FANGO
Frameset Pre-Order
€2700.00
Wunschzettel kommt per Mail
Auf diesem kannst du zwischen "90s Marley" oder "Not Normal Racing Brown" wählen.
Auch komplett individuelle Custom Lackierungen sind möglich.
FRAME: Handbuilt Steel Frame from Premium Dedacciai Tubing

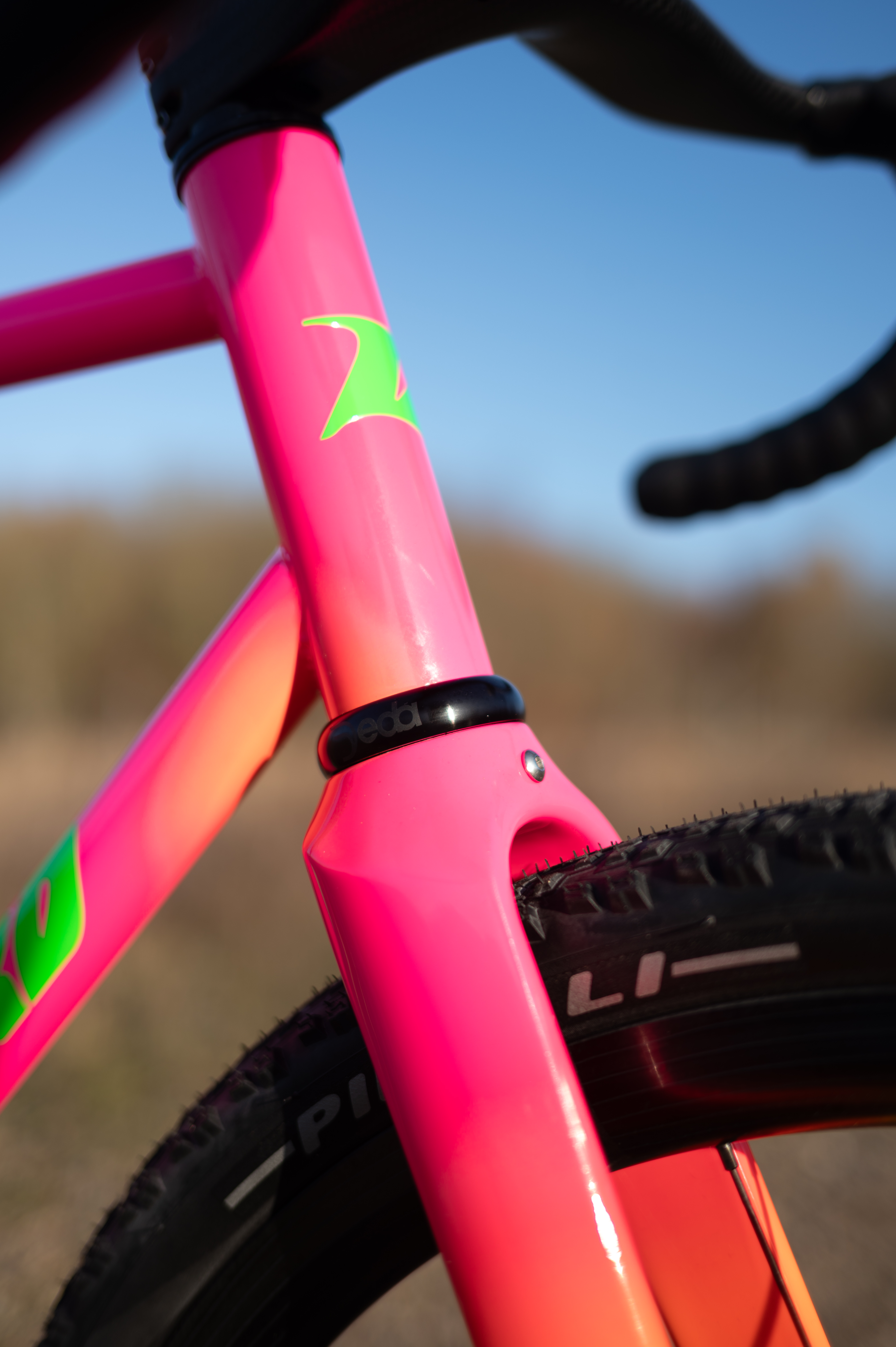

FORK: High Module Deda EDG Carbon
COLOR: Choose from "90s Marley" or "Not Normal Racing Brown"
(Custom Paint Jobs Available)HEADSET: Deda Elementi Classic1
BOTTOM BRACKET: CERAMICSPEED T47
D-Hanger: SRAM UDH Derrailleur Hanger
Thru-Axles: Super Light Aluminum
SIZE | XS | S | M | L | XL | XXL |
REACH | 376.5 | 390 | 405 | 418,5 | 432 | 446,5 |
|---|---|---|---|---|---|---|
STACK | 530 | 548 | 574 | 601 | 618 | 635 |
TOP TUBE | 503 | 523,5 | 554,5 | 578,5 | 597 | 614,5 |
SEAT TUBE | 434,5 | 474 | 508 | 551,5 | 572,5 | 581 |
HEAD ANGLE | 71,25 | 71,5 | 71,75 | 72 | 72 | 72 |
SEAT ANGLE | 75,25 | 75,25 | 74,25 | 74,25 | 74,25 | 74,25 |
HEAD TUBE | 103 | 121 | 147,5 | 175 | 193 | 210,5 |
CHAINSTAY | 425 | 425 | 425 | 425 | 425 | 425 |
WHEELBASE | 1003 | 1020 | 1042 | 1062 | 1080,5 | 1100 |
FRONT CENTRE | 589 | 606 | 627 | 647 | 665,5 | 685,5 |
BB DROP | 72,5 | 72,5 | 72,5 | 72,5 | 72,5 | 72,5 |
BB TYPE | T47 | T47 | T47 | T47 | T47 | T47 |
FORK RAKE | 50 | 50 | 50 | 50 | 50 | 50 |
FORK LENGTH A2C | 395 | 395 | 395 | 395 | 395 | 395 |
SEATPOST DIAMETER | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
TYRE MAX WIDTH | 45-622 | 45-622 | 45-622 | 45-622 | 45-622 | 45-622 |
FRAMES TUBES | PREMIUM DEDACCIAI STEEL TUBING |
FORK | DEDA EDG HIGH MODUL CARBON FORK |
BOTTOM BRACKET TYPE | T47 |
|---|---|
MAX. TIRE WIDTH (ETRTO) | 45-622 |
DERAILEUR HANGER | SRAM UDH |
CABLE ROUTING | FULLY INTEGRATED DEDA DCR |
COMPLETE BIKE | FROM €4490.00 |
